The CLARK PPFXS20 is a highly productive truck, featuring a high driving speed and long mileage. This low lift pallet truck with an integrated operator platform and padded side walls is designed for efficient material flow on medium and long transport routes. Thanks to the fully electric steering system and automatic speed reduction in curves, the truck is operated intuitively, safely, and with high precision.

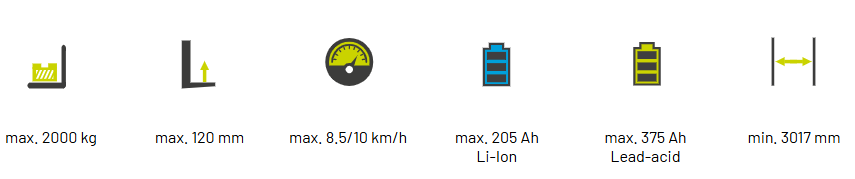

TECHNICAL SPECIFICATIONS:

• Lifting capacity: 2000 kg

• Maximum lifting height: 120 mm

• Maximum speed: 8.5/10 km/h

• Engine: electric, 1.6 kW (traction), 2.2 kW (hoist)

• Battery: up to 375 Ah (lead-acid) or 205 Ah (lithium-ion)

KEY FEATURES AND BENEFITS:

Powerful Drive and High Speed

The maintenance-free and enclosed 1.6 kW three-phase traction motor and the powerful 2.2 kW hoist motor ensure maximum efficiency when lifting and lowering loads. The high maximum speed of 10 km/h allows for high productivity, even with a full load.

Safety and Ergonomics

The PPFXS20 platform is fully suspended, which guarantees vibration-free operation over long distances, allowing the operator to concentrate on their work. The electric power steering is smooth and allows for precise manoeuvring even in the tightest spaces. The automatic speed reduction in curves, proportional to the steering angle, reduces centrifugal forces and increases safety.

Flexible Energy Management

For intensive applications, such as multi-shift operation, the PPFXS20 is available with a lithium-ion battery (205 Ah). Thanks to the integrated charger, the battery can be charged from any 230 V socket, and 7% capacity is reached in just 10 minutes. This technology not only increases productivity but also reduces maintenance costs. For quick and easy battery replacement, the model can be equipped with a side battery removal feature. The truck can also come standard with a lead-acid battery up to 375 Ah.

Simple Maintenance and Reliability

Due to the proven AC controllers, the PPFXS20 is easy to maintain, which helps reduce operating costs. In the event of a fault, an error code is shown on the display, and a one-piece cover allows easy access to components. All driving parameters can be easily programmed by the technician via the display.

The CLARK PPFXS20 is an ideal choice for companies looking for a high-performance, safe, and reliable electric pallet truck with a platform for intensive transport tasks.

Interested? Contact us and we will help you choose the model that meets your needs!
