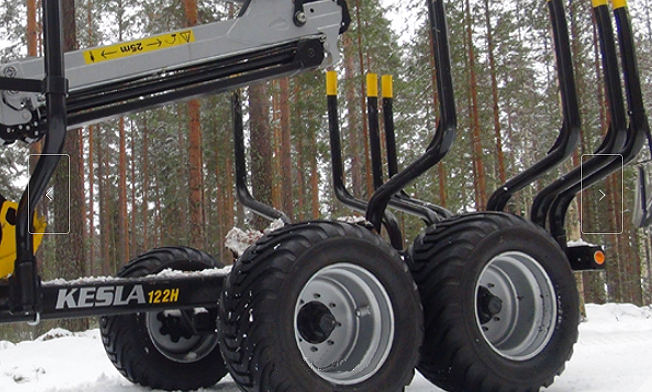

122H|HD|ND



Kesla’s 12-tonne timber trailers have been designed for professional use with even the largest tractors.

The trailer series 122 can be ordered with both hydraulic roller drive or wheel motors drive. In difficult conditions, the terrain ability can be improved with chains or tracks. Drive release facilitates faster driving speed in highway traffic.
Like other KESLA-trailers, 122-trailers have a strong single beam frame and sturdy front screen and front screen supports as standard. The draw bar is articulated with two cylinders.

There are various wheel and brake options available.

MODEL PRODUCT FAMILY () CARRYING CAPACITY (t) WEIGHT INCLUDING FRONT SCREEN, BEAM CONTROL AND EXTRA BUNK (kg) TOTAL LENGTH (mm) TOTAL WIDTH (mm) LOAD SPACE AREA (m2) LOAD SPACE LENGTH (mm) GROUND CLEARANCE (mm)
KESLA122H 122 12 2620 6295 2500-2600 3.2 4000 610-670
KESLA122HD 122 12 2780 6295 2500-2600 3.2 4000 610-670
KESLA122ND 2 WD 122 12 2760 6295 2500-2600 3.2 4000 610
KESLA122ND 4 WD 122 12 2850 6295 2500-2600 3.2 4000 610-670
