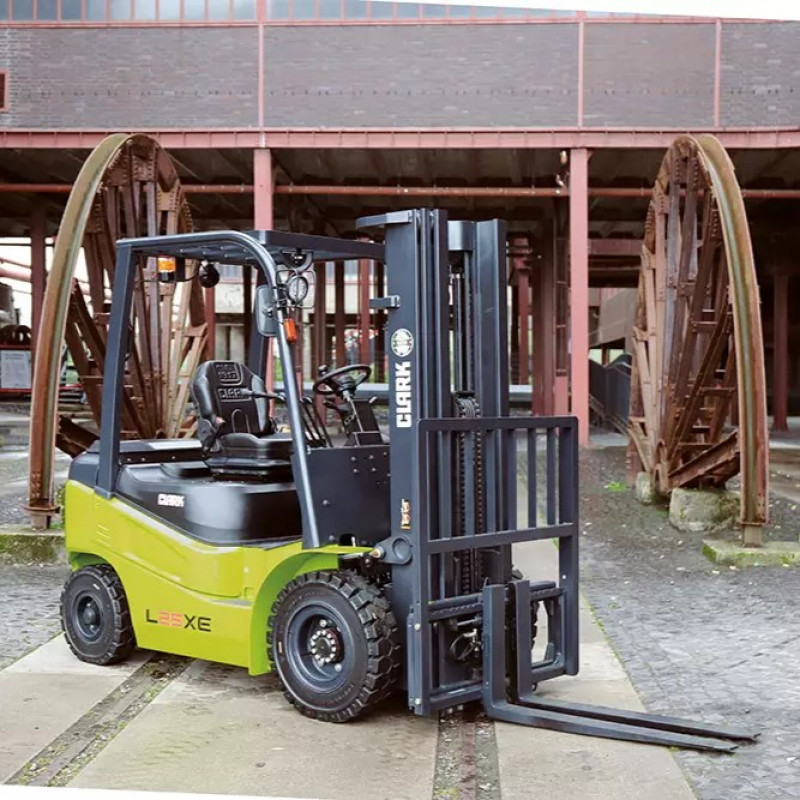

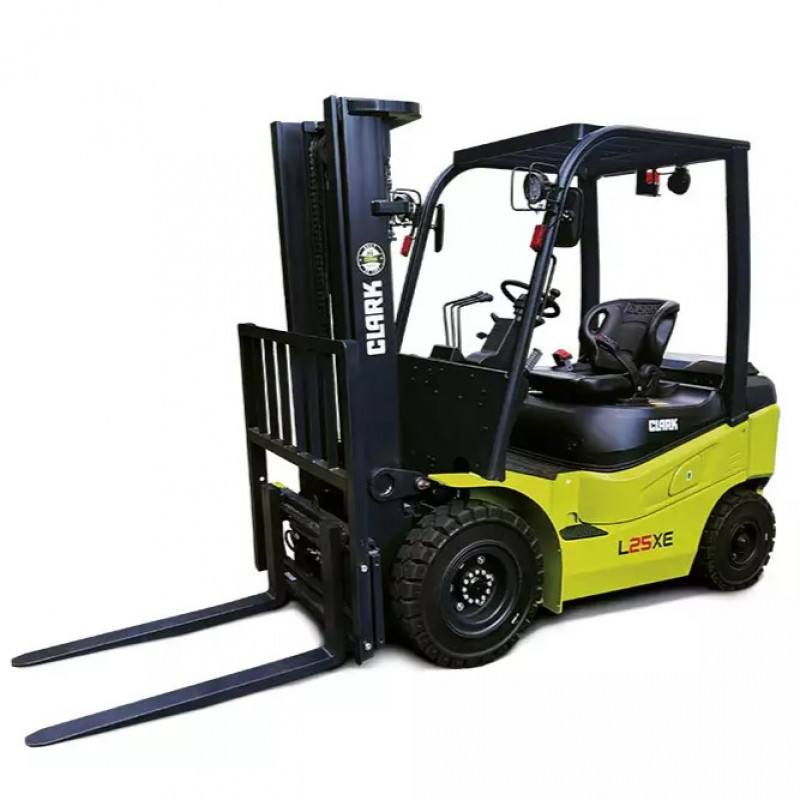

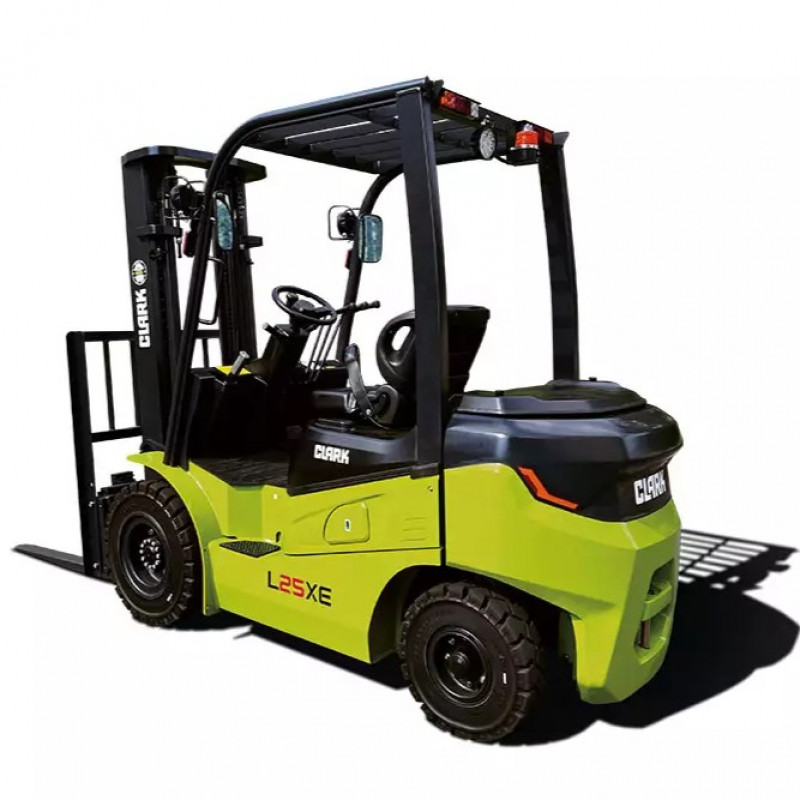

CLARK Raider (L25-35XE) – these are environmentally friendly alternatives to internal combustion engine forklifts, without compromising on performance, dimensions, or reliability. Equipped with modern lithium-ion technology, these electric "crossover" forklifts ensure long operating times and short downtimes during charging. Thanks to excellent all-round visibility, predictable driving behavior, and CLARK's industry-leading masts, the L25-35XE series is cost-effective and built to last.

WHAT MAKES THE CLARK RAIDER (L25-35XE) SPECIAL?

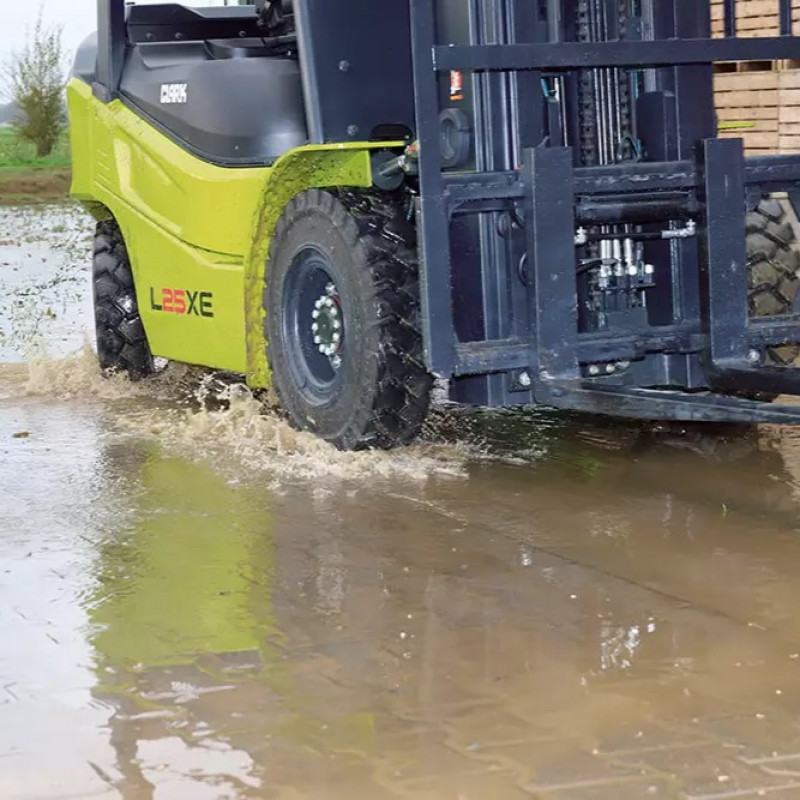

The CLARK Raider (L25-35XE) combines the best features: its dimensions and functionality match those of diesel and LPG forklifts, providing the same power and robustness expected from internal combustion engine models. At the same time, you benefit from all the advantages of a modern, emission-free electric drive. With this unique combination of power, flexibility, and eco-friendliness, the CLARK Raider (L25-35XE) sets new standards for versatile use in a variety of work environments – both indoors and outdoors.

FEATURES:

• Top-Class Ergonomics for the CLARK Raider L25-35XE: The CLARK Raider series was developed to maximize operator comfort and enable fatigue-free working, even over long shifts. The spacious driver's cabin offers plenty of room, while the ergonomically designed seat ensures a high level of comfort. Thanks to the excellent view of the load and the surroundings, safe and efficient operation is guaranteed. The intelligent arrangement of the controls reduces the physical strain on the driver and enables simple operation without unnecessary movements. Fully suspended CLARK seats also provide extra comfort by absorbing shocks and vibrations on uneven ground, thus protecting the driver.

• Flexible Energy Supply with safe Lithium-ion batteries: For maximum flexibility, the CLARK L25XE series is equipped with three different lithium-ion batteries: 230 Ah, 346 Ah, and 460 Ah. All batteries are based on safe lithium iron phosphate technology (LiFePO4), which is characterized by a high level of safety, reliability, and longevity. Various chargers are also available, including a vehicle with an integrated onboard charger, which allows for fast and flexible recharging anytime and anywhere – whether in the hall or on the outdoor area.

• Optional integrated charger: The optional 80 V and 35 Ah charger, integrated into the vehicle, allows for flexible charging from any conventional 230 V socket. It is ideal for intermediate charging, as recharging can be carried out directly at the place of use without having to take the vehicle to a stationary charger. At the same time, it is still possible to use a more powerful external charger with 80 V and 100 Ah or 80 V and 200 Ah, which fully charges the battery more quickly and thus increases its operational readiness.

• Modern Display for an optimum Overview: The "Raider" series features a generous 4.3-inch color LCD screen, which displays all important information clearly and concisely. The menu allows for intuitive operation. Function keys located to the right and bottom of the display ensure simple and efficient control. For service and maintenance, there is a password-protected area that can only be accessed by authorized personnel. Drivers can choose between three driving modes – H (High), S (Standard), and E (Eco) – to adapt the driving characteristics to the situation.

• Maximum Safety with the Operator Presence System (OPS): The "CLARK Raider" is equipped with the Operator Presence System (OPS), which significantly increases the safety of the driver and the surrounding area. The system monitors the presence of the driver and automatically switches off the hydraulic and driving functions when the operator leaves the seat. This feature prevents unintentional movements of the truck and thus offers additional protection against accidents and injuries. The OPS ensures that the forklift is only active when the driver is safely seated in their place and is in control. This ensures smooth and safe forklift operation.

OPTIONAL EQUIPMENT:

• Driver's seats: The driver's seat is available with either mechanical suspension or air suspension. Various versions with an orange seat belt, side safety bars, or armrests are available.

• Additional hydraulic functions: Additional functions can be added to operate different attachments.

• Blue LED warning lights: Blue LED warning lights provide a visual warning for both directions of travel.

• Fork positioners with sideshift function: If the load widths change frequently, CLARK fork positioners are a good choice for increasing handling capacity. They also have a separate sideshift.

• Integrated charger: The integrated charger with 80 V and 40 Ah allows flexible charging from any conventional 230-volt socket.

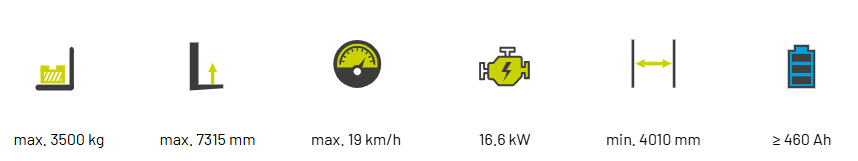

TECHNICAL SPECIFICATIONS:

Model	L25XE	L30XE	L35XE
Load capacity in kg	2500	3000	3500
Overhead guard heights mm	2170	2180	2195
Total width mm	1180	1260	1300
Lifting height from/to mm	2015/7315	2015/7315	1985/7135
Working aisle width with pallet 800 x 1200 along (mm)	4210	4310	4375
Driving speed with/without load (km/h)	18/19	17/18	16/18
Battery voltage/ max. rated capacity	80V-230 Ah 80V-346 Ah	80V-230 Ah 80V-346 Ah 80V-460 Ah	80V-230 Ah 80V-346 Ah 80V-460 Ah

The CLARK Raider (L25-35XE) – an intelligent choice for sustainable future work with top performance.

Interested? Contact us, and we'll help you choose the CLARK Raider (L25-35XE) model that best suits your needs!
