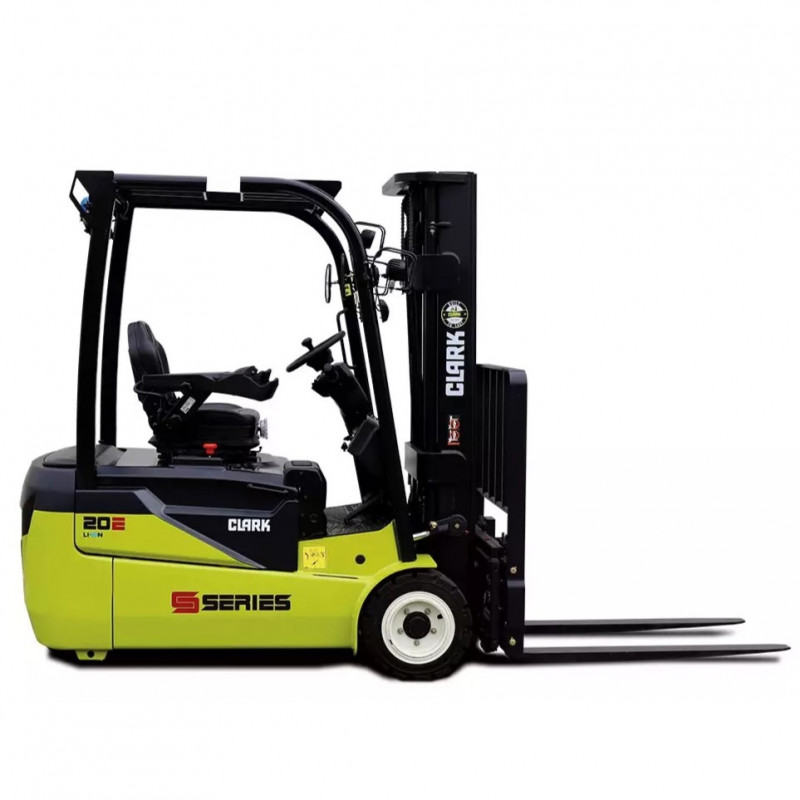

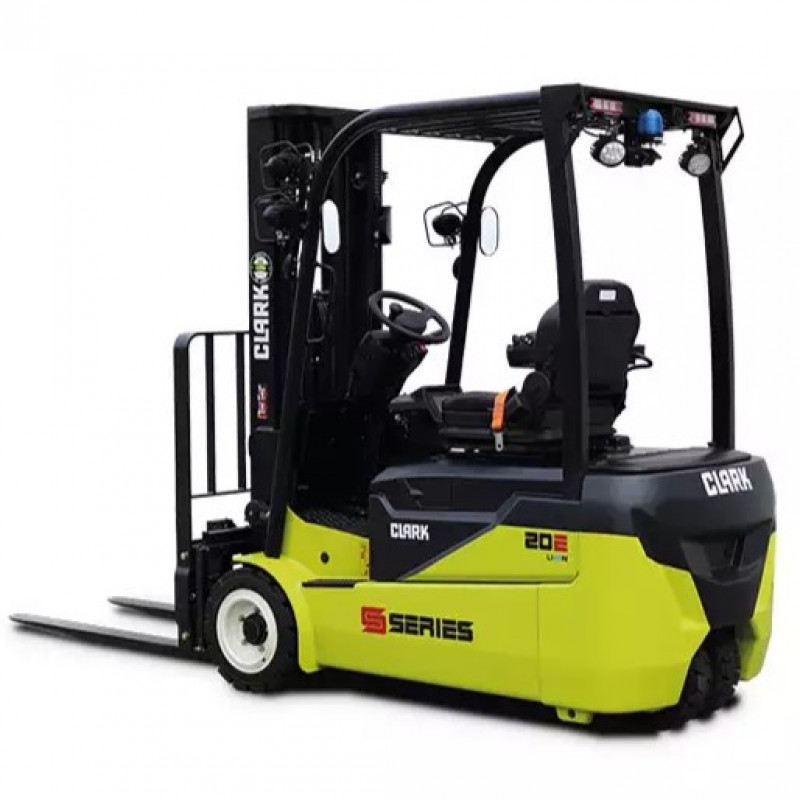

The CLARK STE16-20 series comprises three-wheel electric forklifts of exceptional performance, maximum safety, and excellent ergonomics. These emission-free forklifts, with a lifting capacity ranging from 1600 kg to 2000 kg, ensure smooth logistics processes and are built for long-term use. Featuring an advanced SMART display, two powerful and quiet motors, and a durable design, the STE16/18/20 models represent a new generation of electric forklifts – they are smart, strong, and safe.

WHY CHOOSE CLARK STE16/18/20?

• Advanced Performance and Durability: The STE16-20 series combines two powerful, quiet drive motors with a robust, durable construction. This guarantees not only reliable operation but also low operating costs throughout the forklift's service life.

• CLARK Lithium-Ion Technology: Take advantage of the benefits of modern Lithium-ion (Li-ion) technology, which CLARK offers for these models. These batteries ensure maximum forklift availability due to extremely short charging times, require no maintenance, and allow flexible multi-shift operation as they can be opportunity charged during breaks.

  • Flexibility and Economy: You will save time and optimize storage space as there is no need to change batteries. Importantly, you can switch back to lead-acid technology at any time if your operating conditions change, ensuring maximum adaptability to any application profile.

• Maximum Visibility and Safety:

  • Clear View: An optimized arrangement of chains and hoses, combined with the perfect positioning of the overhead guard struts, ensures excellent visibility of the forks, load, and upwards.

  • Smart Truck Monitoring: The 5-inch SMART display allows individual programming of driving parameters and displays the rearview camera image, ensuring optimal environmental monitoring when reversing.

  • CLARK VMS System: When this function is activated, the mast's tilting process automatically stops in the vertical position, increasing safety during loading.

  • Load Weight Indicator: The display shows the current load weight on the forks, allowing for precise monitoring and control of loads.

  • Nested Mast Profiles: Provide the operator with a wide field of vision, ensuring excellent visibility of the load. When driving straight ahead, the large, unobstructed window also increases safety.

• Ergonomic and Easy Operation:

  • Comfortable Hydraulic Levers: Standard, easy-to-grip hydraulic levers mounted on the bonnet allow control of up to five hydraulic functions and the use of various attachments.

  • Integrated Mini-Levers: Optional ergonomic mini-levers for hydraulic control are available, which can be integrated into the direction of travel change mechanism upon request.

  • Direction Switch on the Hydraulic Lever: By changing the travel direction using the hydraulic lever, the operator experiences less stress, as it is no longer necessary to change the travel direction at the steering column.

OPTIONAL EQUIPMENT:

• Operator's Seats: Available with either mechanical suspension or air suspension. Various versions offered with an orange safety belt, side safety bars, or armrests.

• Additional Hydraulic Functions: Allows the operation of various attachments, switchable via a solenoid valve on the mast.

• Direction Switch on the Hydraulic Lever: Simplifies the operator's work, as it is no longer necessary to change the travel direction at the steering column.

TECHNICAL SPECIFICATIONS:

Model	STE16	STE18	STE20
Load capacity kg	1600	1800	2000
Height above protective roof mm	2066	2066	2066
Total width mm	1059	1059	1122
Lifting height from/to mm	2545/7075	2545/7075	2545/7075
Aisle width with pallet 800 x 1200 lengthwise (mm)	3358	3466	3506
Travel speed with/without load (km/h)	15/15	15/15	15/15
Battery voltage/max. rated capacity	48V, 500 Ah, (48V, 460 Ah)	48V, 500 Ah, (48V, 460 Ah)	48V, 625 Ah, (48V, 460 Ah)

The CLARK STE16-20 series – these are next-generation three-wheel electric forklifts, designed for efficient, safe, and comfortable work in modern logistics, especially where maneuverability is key. SMART, STRONG, and SAFE – that is your guarantee for reliable and productive operation.

Interested? Contact us, and we'll help you choose the CLARK STE16-20 series model that best suits your needs!
